Precise routing
for three
product flows.

The 3-port Tube Diverter Valve (3-TDV) routes pneumatically conveyed powders, granules, and pellets to or from three locations. An additional line cylinder supports accurate tube positioning, while exact pipe alignment, a smooth bore, and a robust swan neck help minimise product degradation. The detachable construction supports out-of-place cleaning, with in-place cleaning possible by purging the line with cleaning liquid.

The 3-port Tube Diverter Valve (3-TDV) routes pneumatically conveyed powders, granules, and pellets to or from three locations. An additional line cylinder supports accurate tube positioning, while exact pipe alignment, a smooth bore, and a robust swan neck help minimise product degradation. The detachable construction supports out-of-place cleaning, with in-place cleaning possible by purging the line with cleaning liquid.

USDA

Execution Available

7

Available sizes

Request a quote

Thank you Your quote request has been received!

Something went wrong.

One moment..

ENQUIRY TYPE arrow
PRODUCT INFORMATION arrow
ATEX arrow
ADDITIONAL Information arrow

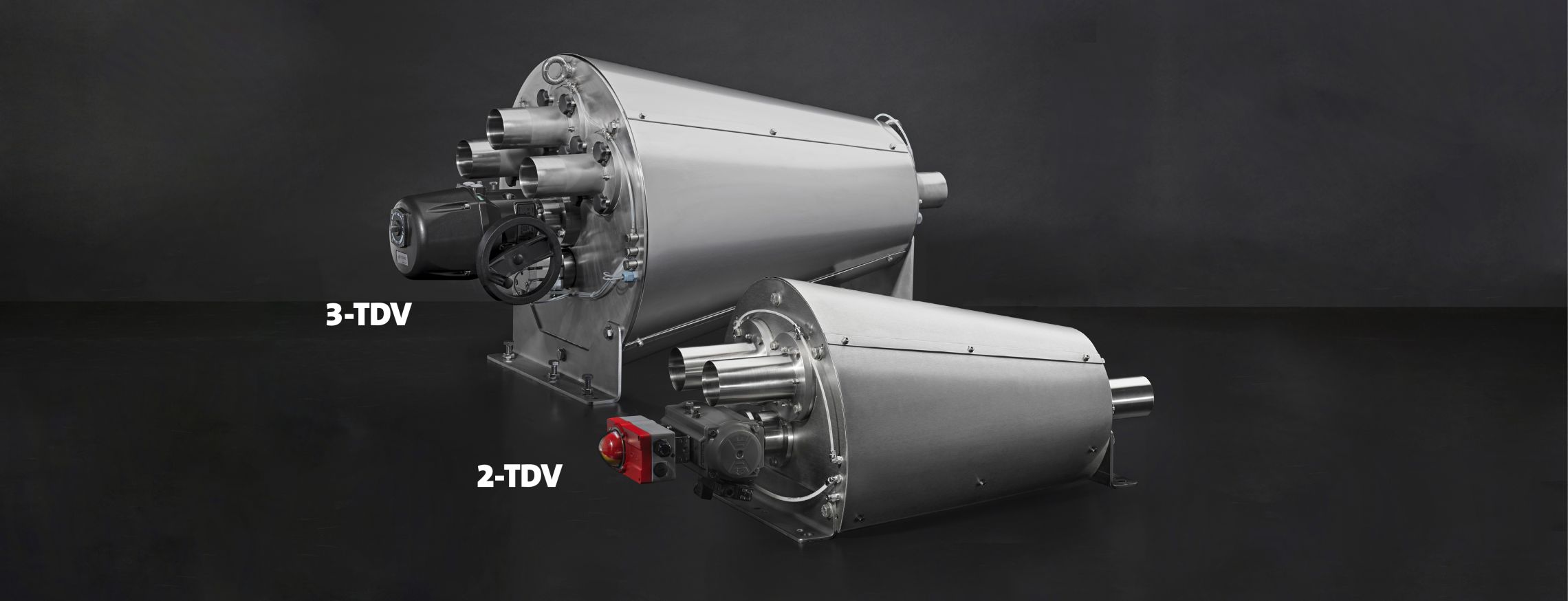

3-TDV TUBE DIVERTER VALVE

ACCURATE POSITIONING FOR THREE-FLOW SYSTEMS

The 3-TDV handles the convergence and diversion of pneumatic flows among three locations. Its additional line cylinder supports accurate tube positioning, while the smooth internal product path and detachable construction make it suitable for applications where gentle handling and practical cleaning are important.

Download product info

UP TO THREE PRODUCT FLOWS

A single 3-TDV can be used for converging or diverting applications involving up to three product flows.

ACCURATE TUBE POSITIONING

An additional line cylinder supports precise positioning of the internal tube between the selected connections.

SMOOTH PATH FOR GENTLE HANDLING

Exact pipe alignment, a uniform smooth bore between inlet and outlet, and a robust swan neck create a controlled product path.

Explore all 05 benefits

3-TDV TUBE DIVERTER VALVE

3-TDV at a glance

UP TO THREE PRODUCT FLOWS

A single 3-TDV can be used for converging or diverting applications involving up to three product flows. This gives process designers greater routing flexibility with a single compact tube diverter valve.

ACCURATE TUBE POSITIONING

An additional line cylinder supports precise positioning of the internal tube between the selected connections. This helps maintain accurate alignment as the valve switches between routes.

SMOOTH PATH FOR GENTLE HANDLING

Exact pipe alignment, a uniform smooth bore between inlet and outlet, and a robust swan neck create a controlled product path. These features help minimise degradation as powders, granules, and pellets move through the valve.

EASY MANUAL CLEANING

The 3-TDV has a detachable construction designed for manual cleaning. The swan neck is easy to remove, giving quick access to the product path so the valve can be cleaned thoroughly and put back into service.

HYGIENIC VERSIONS AVAILABLE

All product-contact surfaces are stainless steel AISI 316L/DIN 1.4404, with FDA-approved, EC 1935/2004-compliant white EPDM inflatable seals. USDA-accepted versions are available for applications with more demanding hygiene requirements.

Download product info

Tube Diverter Valve

3-TDV

Overview

The 3-TDV is designed for pneumatic conveying systems where powders, granules, or pellets need to be routed to or from three locations. Unused ports are sealed by a rotating disc, while the additional line cylinder helps position the conveying tube accurately between routes. A choice of line connections is available, ranging from simple pipe connections to milk couplings.

The valve is available in seven sizes, from 40 to 150, and operates over a pressure range of -0.8 to +3 barg. Conveying product temperatures range from -20°C to +100°C, with temperatures up to 130°C permitted for short periods. All-stainless-steel and aluminium/stainless-steel configurations are available.

Certifications

  • ATEX
  • EC
  • USDA
  • FDA

Key Features

  • Converging and diverting applications for up to three product flows
  • Additional line cylinder for accurate tube positioning
  • Exact pipe alignment with a uniform, smooth internal bore
  • Robust swan neck designed to minimise product degradation
  • Inflatable white EPDM seals
  • Choice of line connections, from simple pipe connection to milk coupling
  • Seven available sizes from 40 to 150
  • Pressure range from -0.8 to +3 barg; conveying product temperature from -20°C to +100°C

  • 3

    product flows

    For converging or diverting applications

  • 1

    additional line cylinder

    For accurate tube positioning

  • 7

    sizes

    Available from 40 to 150

  • 3

    barg

    Maximum allowable working pressure
